ECLIPSE Ui

• Microscopy Technique

  • Diascopic bright-field observation (Köhler illumination)Specimen / Slide Compatibility

  • Supports a single prepared slide.

  • Slide thickness: 0.9 – 1.2 mm (ISO8037)

  • Cover glass thickness: ~0.17 mm (ISO8255)

  • Observable specimen thickness (slide + sample + cover): up to ~1.7 mm

• Optical System

  • Light source: High-intensity white LED (for both macro and micro imaging)

  • Objectives: CFI Plan Fluor 4×, 10×, 20×, 40×

  • Number of fields of view (FOV): 22

• Motorized Functions
  The following movements and functions are motorized / automated:

  • Nosepiece rotation

  • Stage movement (including slide loading)

  • Objective focusing (vertical)

  • Aperture stop (diaphragm) control

  • Sample holder clips (open / close)

  • Switch between macro and micro observation modes

• Focus Drive

  • Vertical stroke (objective movement): ~10.3 mm

  • Max focusing speed: ≥ 0.7 mm/s

• Stage / Movement

  • Travel: X = 78 mm, Y = 28 mm

  • Max speed: X = 85 mm/s, Y = 78 mm/s

• Aperture Diaphragm

  • Variable aperture: Ø 1.2 mm to 28.1 mm

• Barcodes / Sample Tracking

  • Supports 2D barcodes (QR, Data Matrix) and 1D barcode (CODE-128) for sample tracking.

• Imaging / Micro‑Imaging Modes

  • Stage modes: Half, Full, and Repeat (repeat up to 6 steps per objective)

  • Display modes:

    • Live: 1080 × 1080 @ ≥ 30 fps

    • High‑Quality capture: 3712 × 3712 @ ≥ 1 fps

  • Focus: Contrast AF (autofocus) + manual focus

  • Exposure compensation: –2 to +2 EV

  • Color adjustment: Brightness, Contrast, Saturation, Hue

• Advanced Imaging Functions

  • Hue point registration: Up to 12 points can be registered for consistent color balancing.

  • Marking mode: Allows marking of up to 499 spots on the sample.

  • Measurement mode: Distance measurement (line segment) between two chosen points.

  • Z‑stack imaging: Capture up to 21 images; interval can be set between 0.5 to 5 μm.

• Image / Video Capture

  • Static macro image: 1330 × 460 px

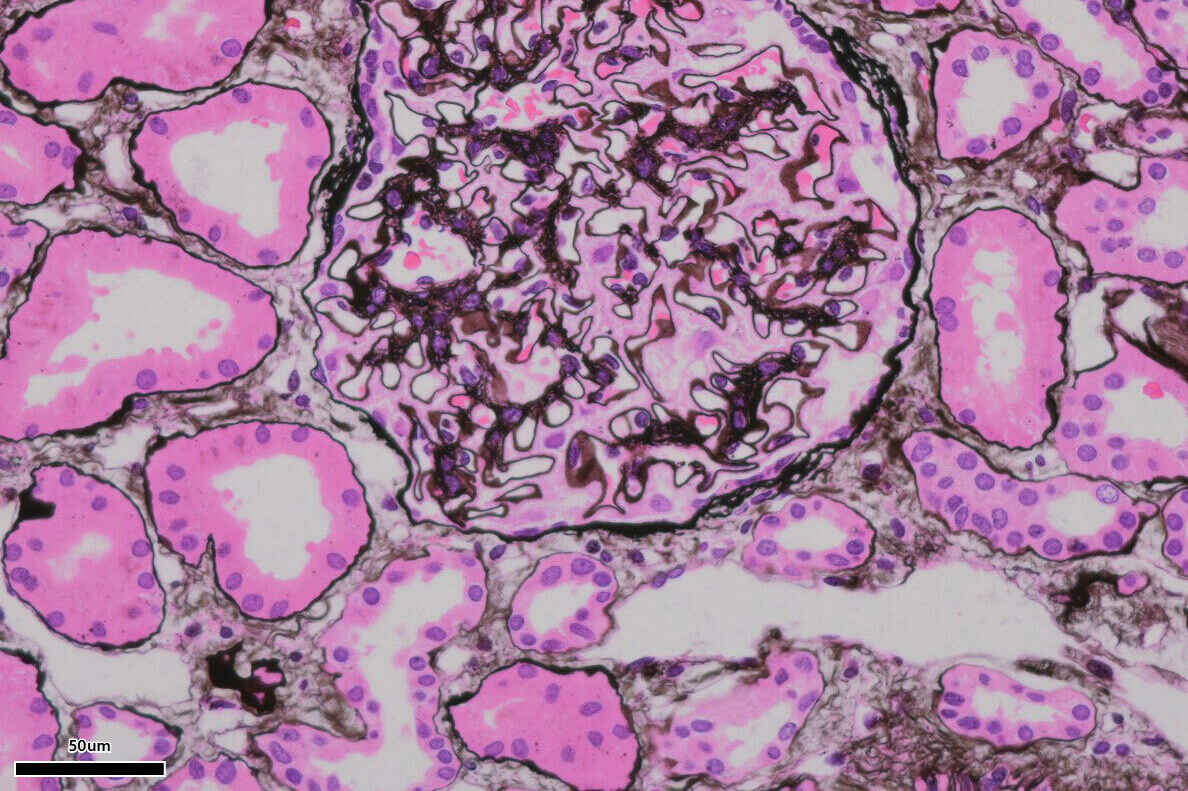

  • Static micro image: Two modes

    • Live mode: 1080 × 1080

    • High-quality: 3712 × 3712

  • Z‑stack capture: 1–21 images, as above

  • Image format: JPEG

  • Video capture: MP4, 1080×1080, ~10 fps, up to 10 minutes (max)

• Remote Operation / Connectivity

  • Remote viewing & control: via network (WebRTC / AWS)

  • LAN: 2 × GbE ports (1000 Mbps)

  • USB: 2 × USB 2.0 Type A ports (480 Mbps)

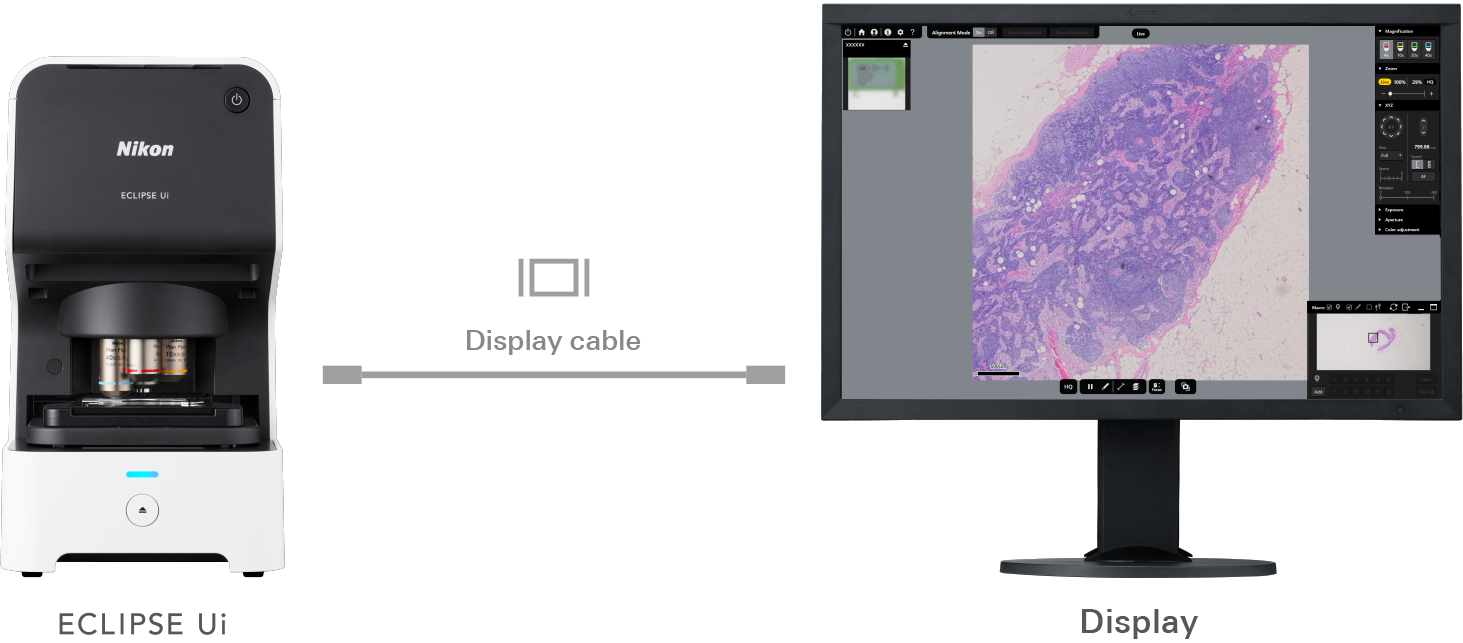

  • Monitor output: Mini DisplayPort; recommended 1920 × 1200 resolution

• Operating System / PC

  • Built-in computer uses Windows 10 IoT Enterprise LTSC 2019

• Power / Electrical

  • Input: AC 100–240 V ±10 %, 50/60 Hz

  • Maximum power consumption: 170 W

• Software Features

  • Macro‑image + micro-image simultaneous display

  • On-screen focus adjustment (via mouse scroll wheel or focus button)

  • Digital zoom: zoom in/out on macro-image with mouse wheel

  • Annotation: freehand drawing, markings, note taking on images

  • Alignment mode: supports comparing different stained samples side‑by‑side; auto alignment of marked points.

  • Trace display: shows a shaded trace on macro image indicating previously viewed regions.

  • Operation modes: Routine, Research / Education, Remote.

• Design / Ergonomics

  • Eyepiece-less design reduces physical strain (no more bending to look through eyepieces).

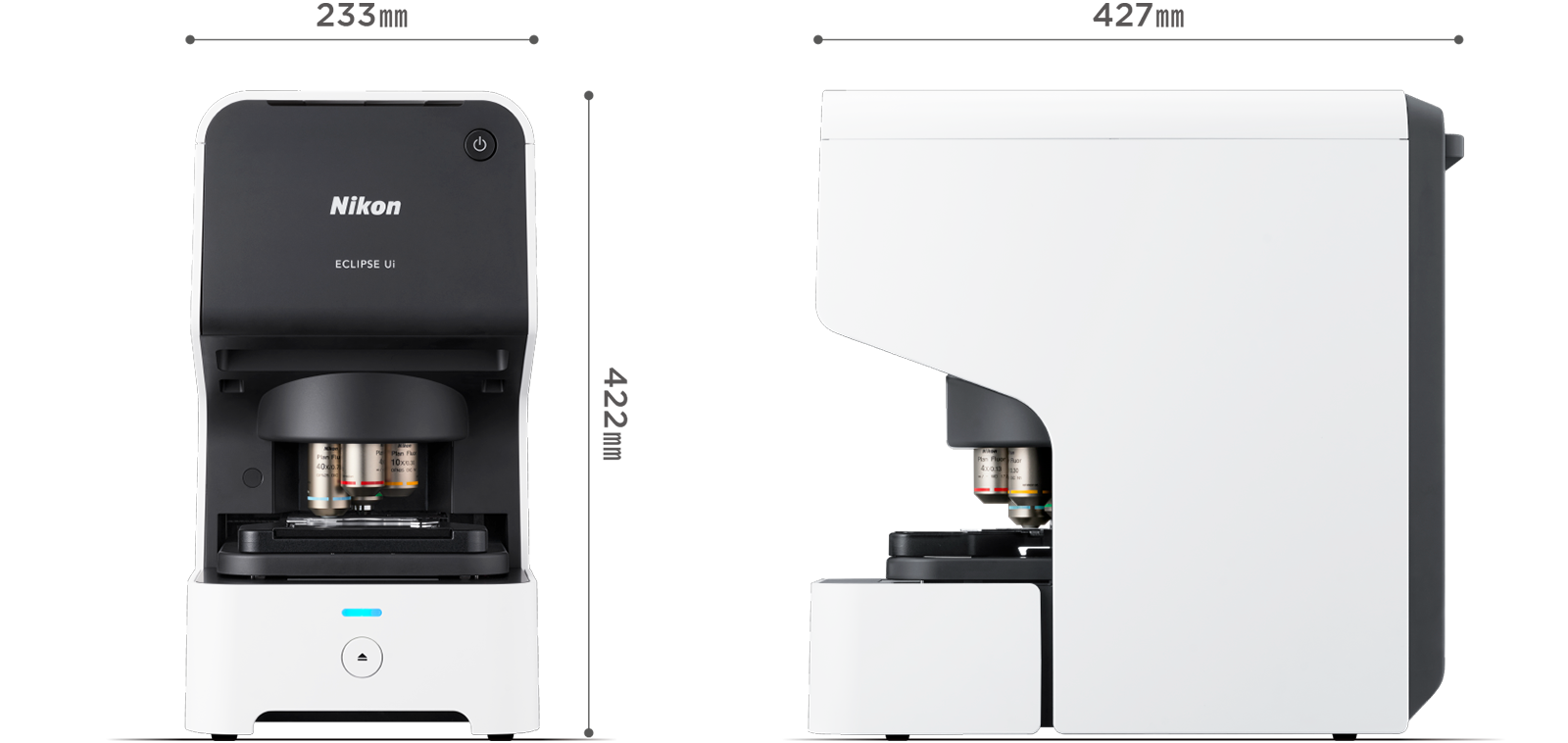

  • Compact footprint: 422 mm (H) × 233 mm (W) × 427 mm (D)

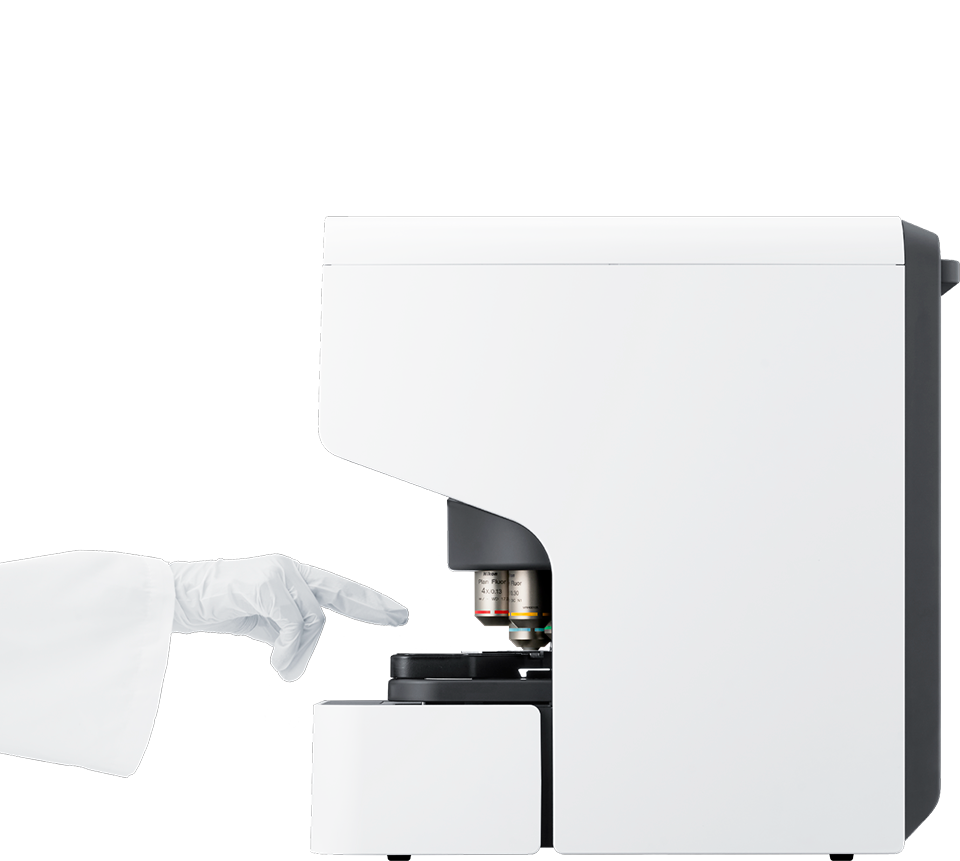

  • One-handed slide loading

• Barcode Features

  • Built-in barcode reader: supports QR, Data Matrix, CODE-128 — helps with sample management.

• Updates / Software Version

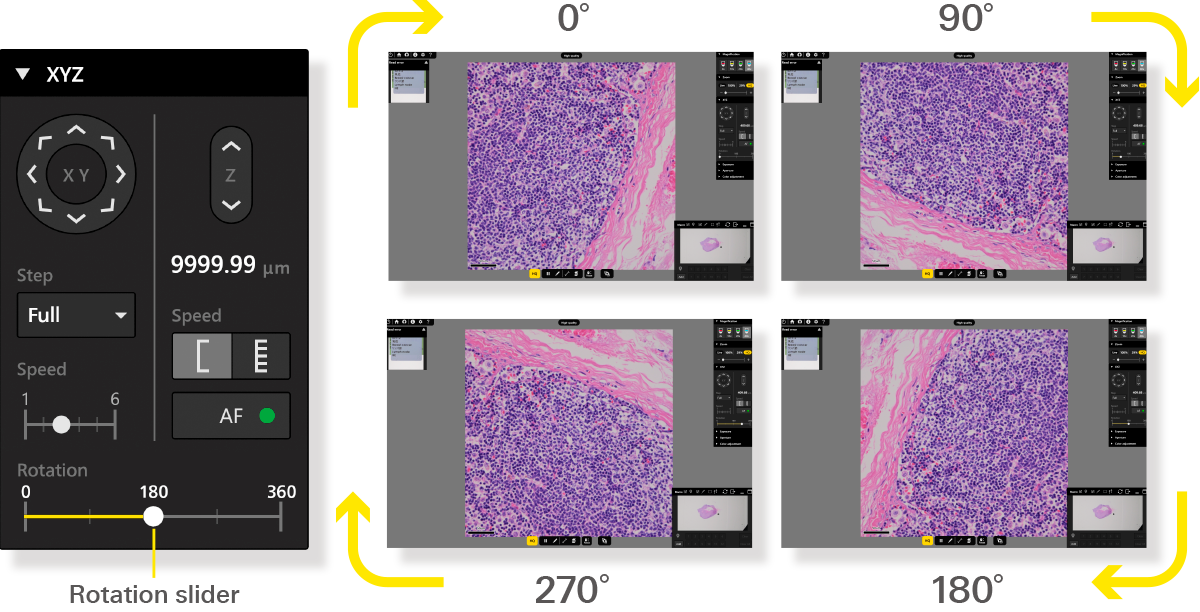

  • Firmware / software version 1.4 (released March 2025) adds features:

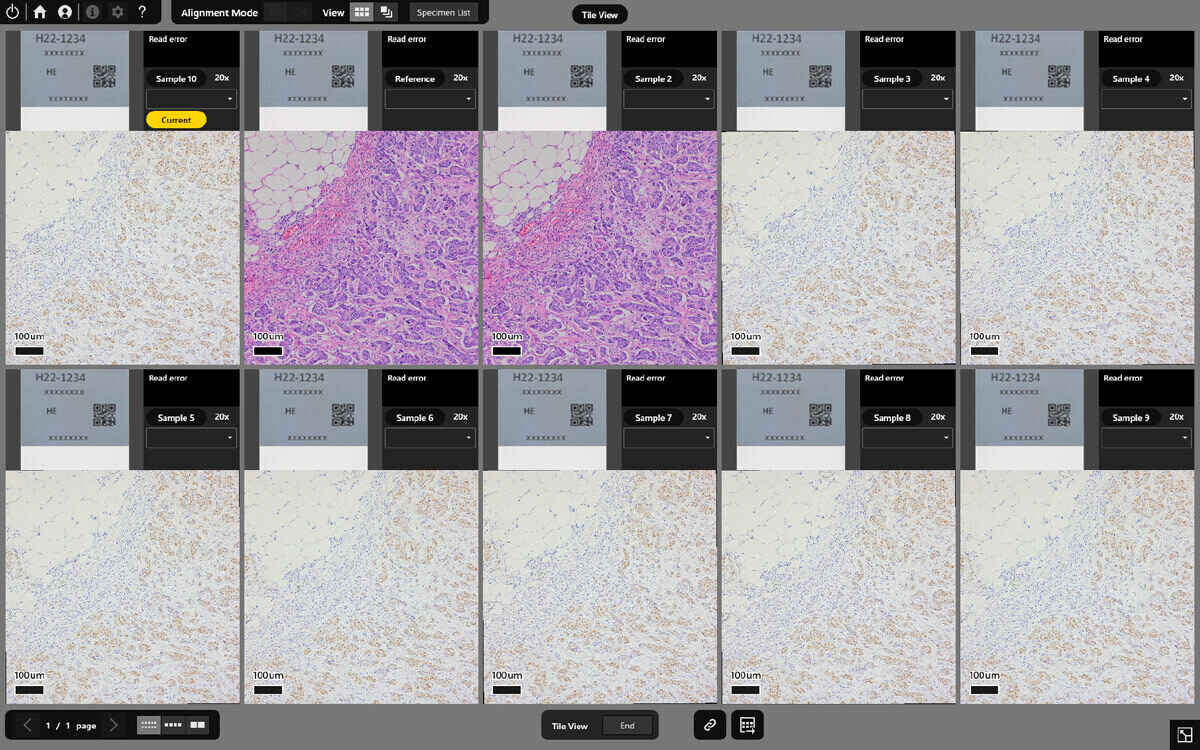

    • Tile View & Layer View for comparing up to 10 specimens on-screen

    • Enhanced remote operation: customizable repeat movement, trace of observed areas, remote control shortcuts.
