Overview

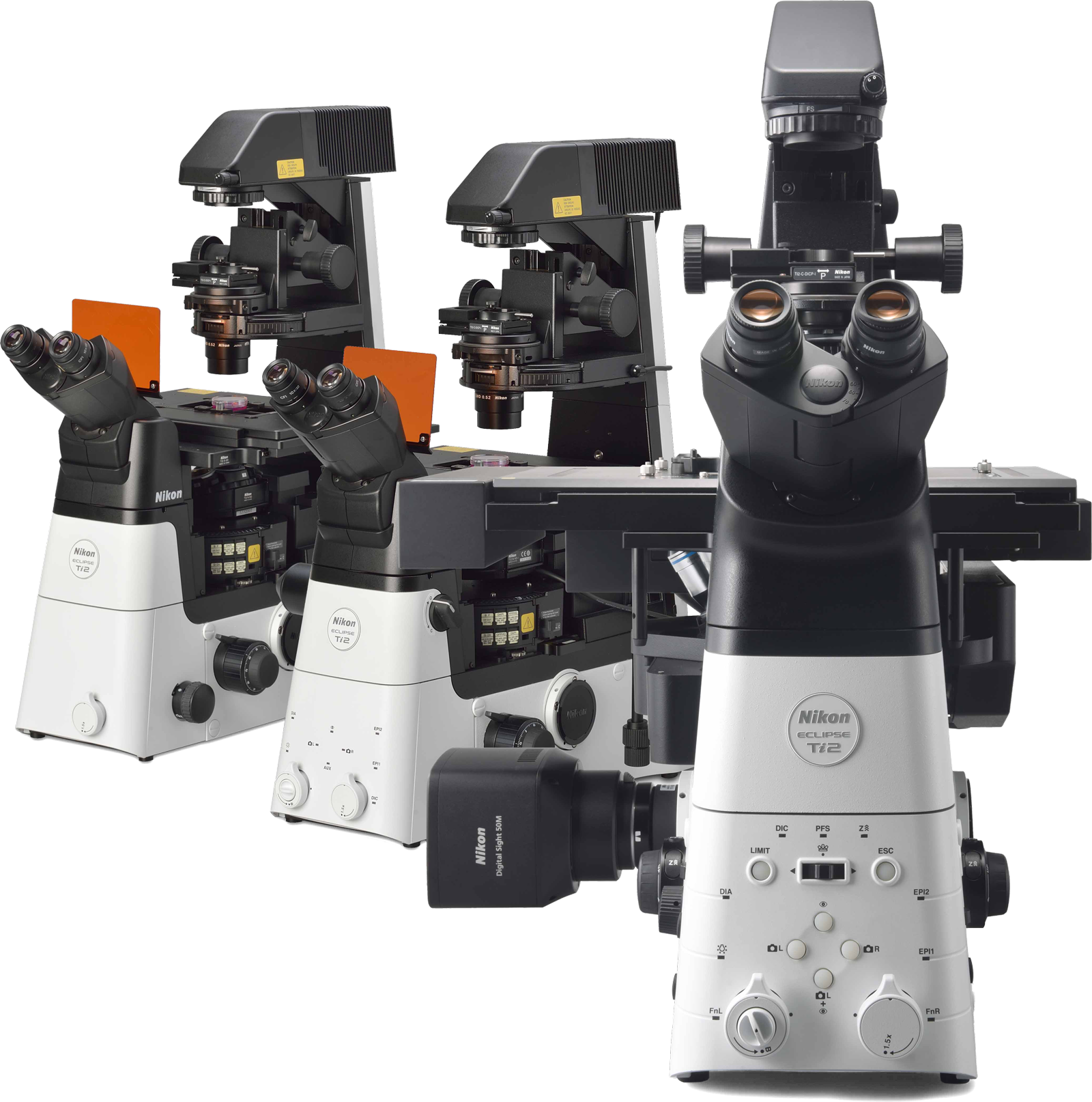

The ECLIPSE Ti2 is Nikon’s high-performance inverted microscope platform engineered for advanced imaging workflows. At its core, the Ti2 offers an exceptionally wide 25 mm field of view (FOV), allowing researchers to fully exploit large-format CMOS camera sensors and significantly increase throughput.
This microscope system is built for stability — it delivers a drift-free imaging platform designed to handle long experiments, super-resolution techniques, and high-speed acquisition. Unique hardware triggering supports demanding, time-sensitive imaging sessions, while intelligent internal sensors continuously monitor system status. This sensor data drives an Assist Guide feature that helps users through critical setup steps, minimizing errors and ensuring reproducibility. During acquisition, all component status is recorded automatically, delivering traceable metadata for quality control.
Integrated with Nikon’s NIS-Elements software, the Ti2 becomes a powerful, all-in-one solution for research imaging, simplifying complex workflows and enabling advanced applications such as live-cell imaging, high-content screening, and super-resolution.

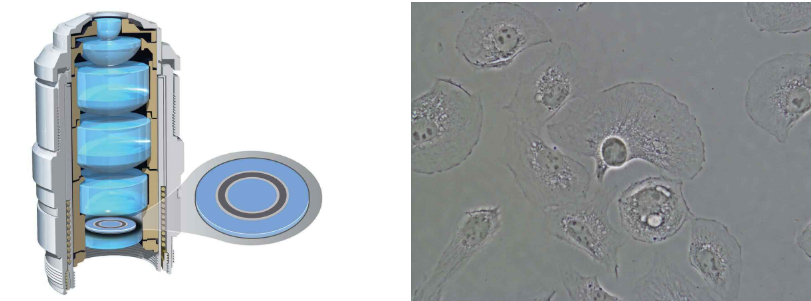

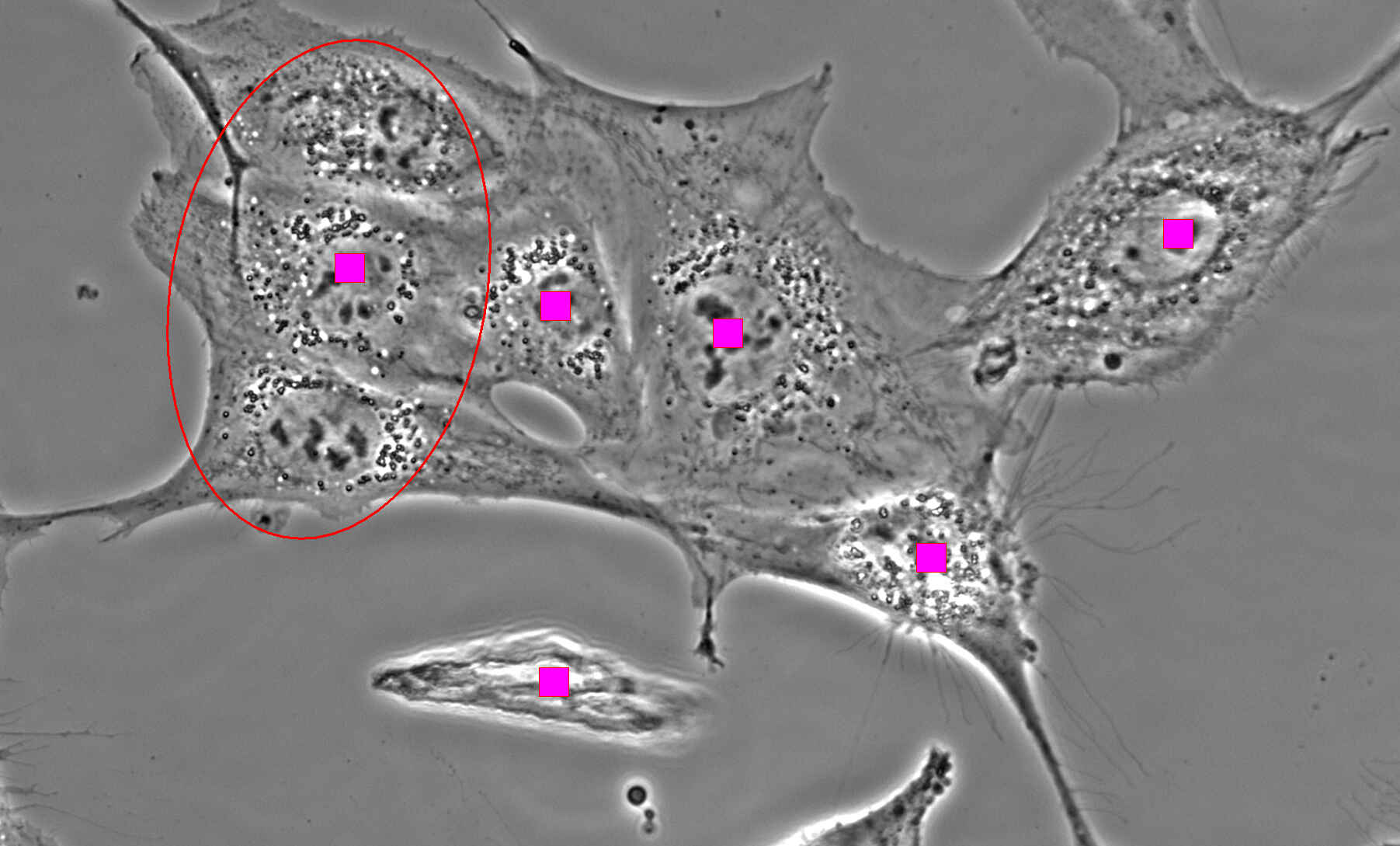

The Ti2-U is a fully manual yet highly stable inverted microscope designed for precision tasks like IVF and micromanipulation. It retains Nikon’s Assist Guide system for status monitoring and alignment help but excludes motorized focus or stage, prioritizing mechanical stability and reliability. With a wide field of view, smooth manual controls, NAMC contrast, and ergonomic layout, the Ti2-U offers excellent clarity and ease of use for labs that need dependable manual performance rather than automation.
Specifications
Optical system: Infinity-corrected CFI60
Field number: 22 (C-mount), 25 (F-mount)
Intermediate magnification switching: Manual 1.0× / 1.5×
Output ports: 4 manual positions — Eyepiece 100%, Left 100%, Right 100%, Eyepiece 20% / Left 80%
Focusing unit: Manual coarse/fine focus, 10 mm stroke
Tube: TC-T-TS Binocular S tube (Field number 22)
Eyepiece tube base: TI2-T-BS (S Eyepiece Tube Base Unit)
Eyepiece: CFI 10× (Field number 22)
Transmitted (dia) illumination:
-
Pillar: TI2-D-PDI with 66 mm vertical stroke, backward tilt up to 25°, and refocusing mechanism
-
Lamphouse: TI2-D-LHLED, high-power LED

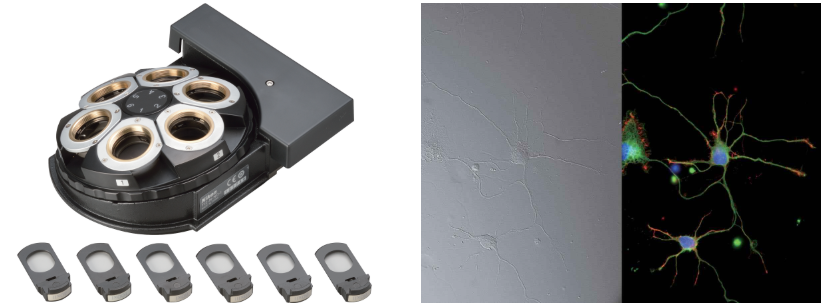

Condenser turret: 7 manual positions (supports LWD, ELWD, CLWD, NAMC)
Condenser lenses: LWD (NA 0.52), ELWD (NA 0.29), CLWD (NA 0.72), NAMC (O.D. 44 mm, NA 0.40)
Stage:
-
Manual gliding stage: TC-S-SR / TC-S-SRF with ±57 mm (X) and ±36.5 mm (Y) travel, adjustable stroke with handle options
-
Alternative: TC-S-GS gliding stage (Ø 20 mm stroke)
Nosepiece:
-

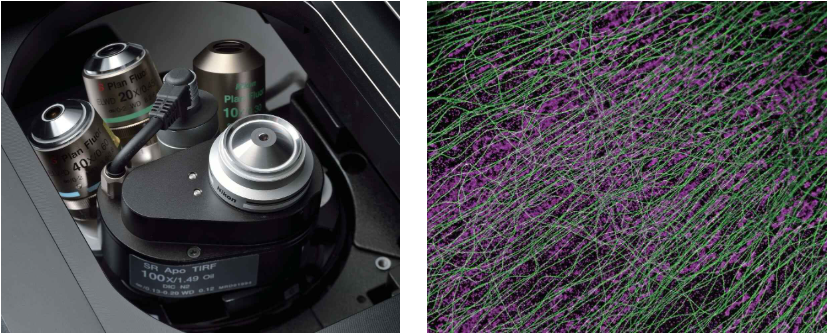

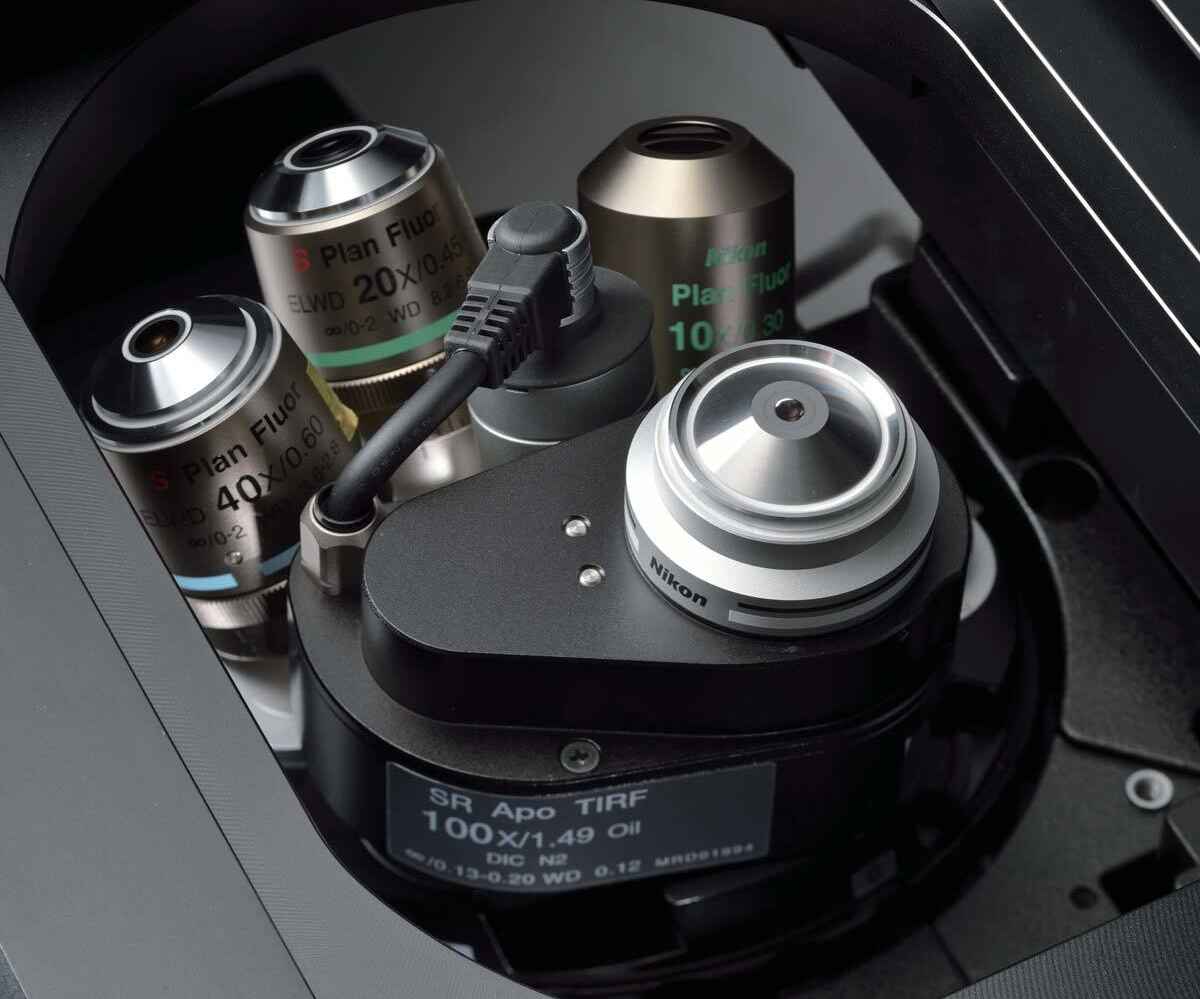

Sextuple nosepiece (Ti2-N-N) — 6 manual positions, water-resistant
-
DIC sextuple (Ti2-N-ND) also available, 6 manual positions
Spindle observation (IVF/ICSI model): TI2-C-SO Spindle Observation System
Adjustment Tool: C-T Centering Telescope (for spindle observation)
Compatible objectives (IVF model):
-
CFI Achromat 4X (0.10 / 30 mm)
-
NAMC 10XF (0.25 / 6.20 mm)
-
LWD NAMC 20XF (0.40 / 3.10 mm)
-
LWD NAMC 40XC (0.55 / 2.70–1.70 mm)
-
CFI Plan Fluor 4X (0.13 / 17.20 mm)
-
CFI S Plan Fluor ELWD NAMC 20XC (0.45 / 8.20–6.90 mm)
-
CFI S Plan Fluor ELWD NAMC 40XC (0.60 / 3.60–2.80 mm)
Power / Supply (IVF variant): 100–120 V (power cord type BU + AC adapter)
Operating environment: 0 °C to +40 °C, ≤ 60% RH (no condensation), indoor use only
