SMZ745 / 745T
Gallery
Overview
The Nikon SMZ745 / SMZ745T is a versatile stereo (dissecting) microscope designed to meet the demanding needs of both industrial and biomedical research. Built around Nikon’s proven Greenough optical system, it delivers a wide magnification range from low to high power (up to 300×), enabling detailed observation from broad overviews to fine-structure inspection. The 7.5× zoom ratio (0.67×–5× zoom) combined with a long 115 mm working distance offers flexibility and space — ideal for manipulation, sample handling, or imaging tasks.
Thanks to a new total-reflection prism design, the SMZ745 series provides bright, high-contrast images across the zoom range. Its robust construction includes protective design elements — an air-tight (for SMZ745), anti-fungal, and anti-static internal coating — making it suitable even under challenging environmental conditions (e.g., high humidity or presence of dust/oil). The SMZ745T variant adds a built-in C-mount camera port, making it convenient for digital imaging or documentation without requiring extension or modification. All these features make the SMZ745 / SMZ745T a dependable workhorse for routine inspection, failure analysis, materials research, quality control, and other demanding microscopy applications.
Specifications
-
Optical system: Greenough stereo optical system
-
Total magnification: 3.35× to 300× (depending on the combination of eyepiece and auxiliary objective)
-
Zoom range: 0.67× to 5× zoom
-
Zoom ratio: 7.5 : 1
-

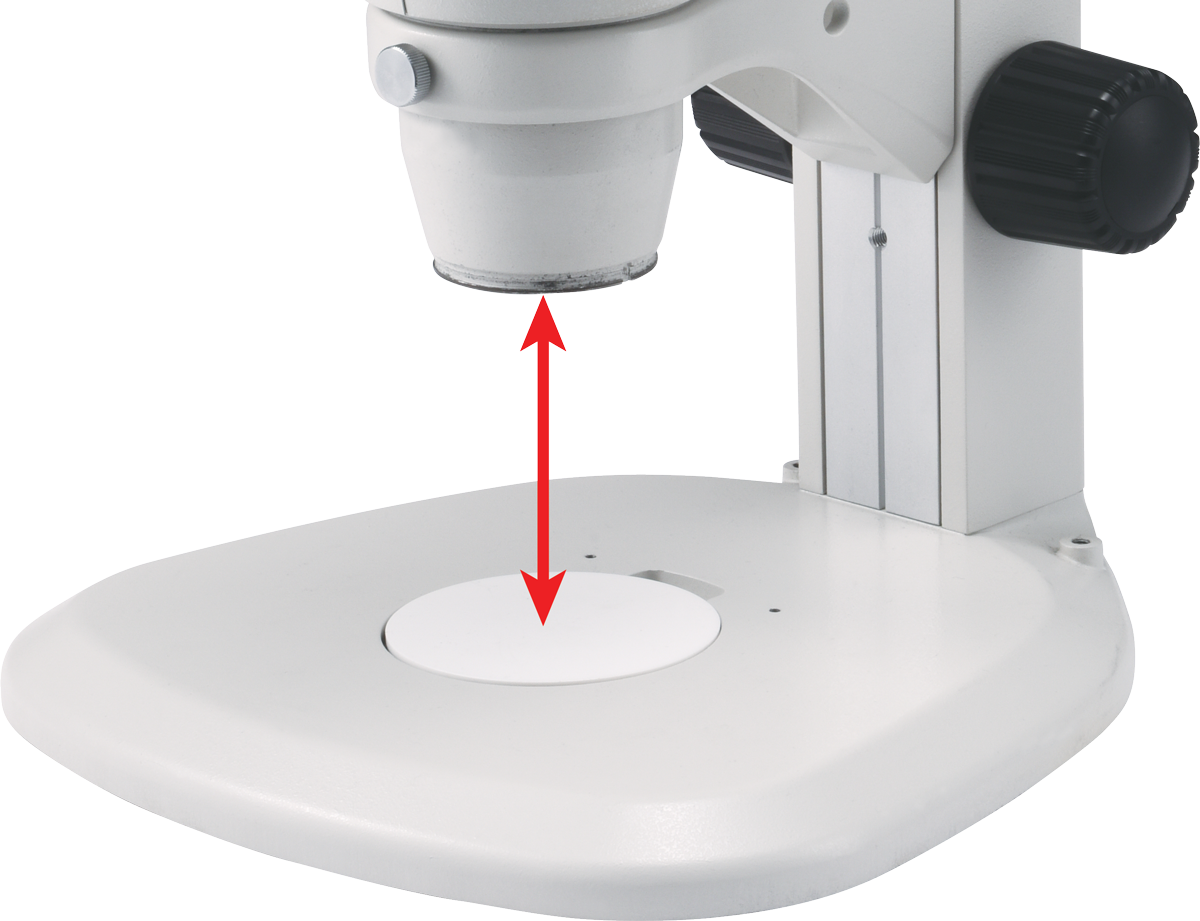

Working distance (standard): 115 mm
-
Eyepiece inclination: 45°
-
Interpupillary distance adjustment: 52–75 mm
-
Eyepieces (with diopter adjustment):
• C-W 10×B (F.N. 22)
• C-W 15× (F.N. 16)
• C-W 20× (F.N. 12.5)
• C-W 30× (F.N. 7) -
Auxiliary objectives (optional):
• G-AL 0.5× (Working Distance 211 mm)
• G-AL 0.7× (W.D. 150 mm)
• G-AL 1.5× (W.D. 61 mm)
• G-AL 2× (W.D. 43.5 mm) -

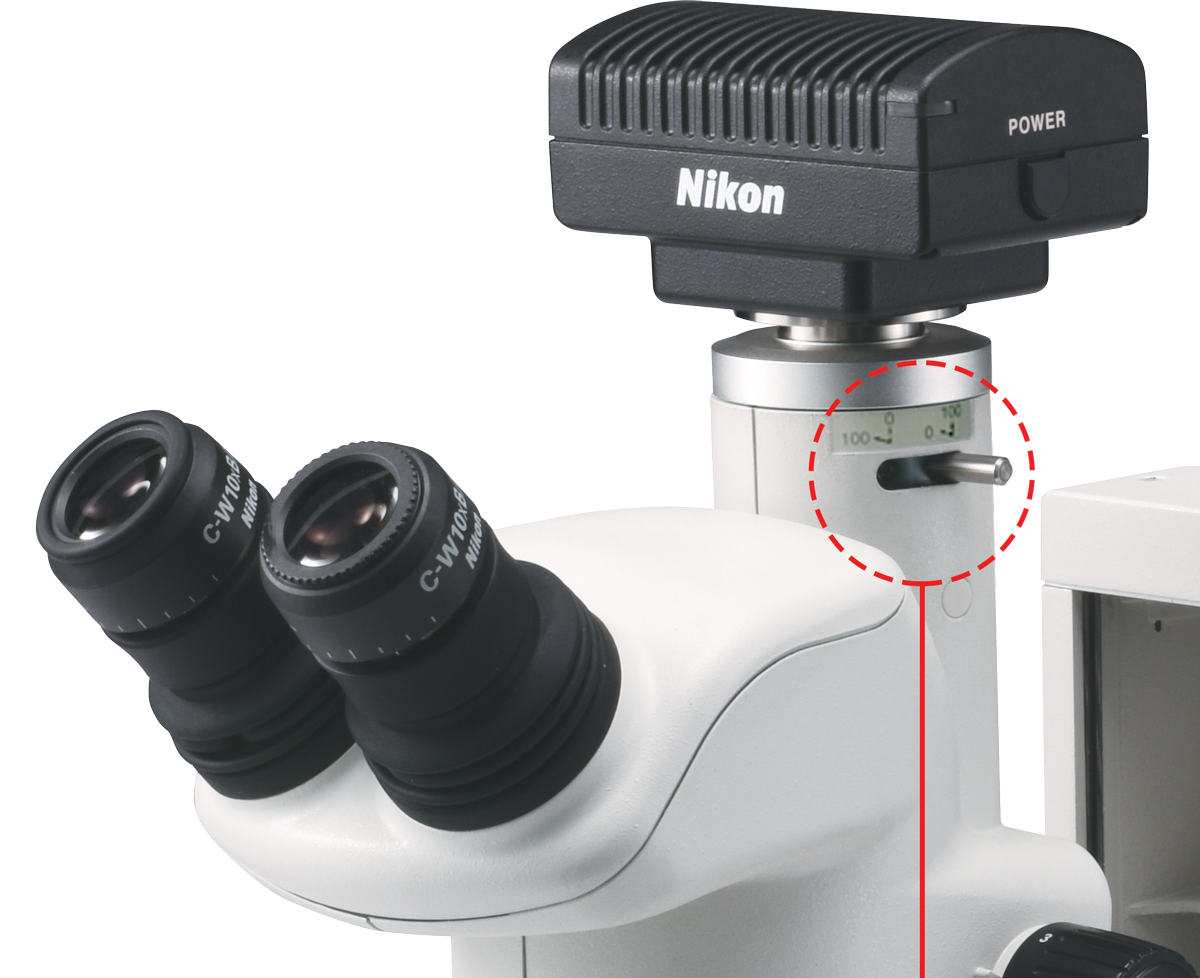

Camera compatibility (SMZ745T only): Built-in C-mount 0.55× magnification lens (F.N. 11), compatible with 2/3″ or smaller CCD sensors — enables direct mounting of digital cameras for imaging.
-
Eyepiece tube type: Fixed type
-
Body design features:

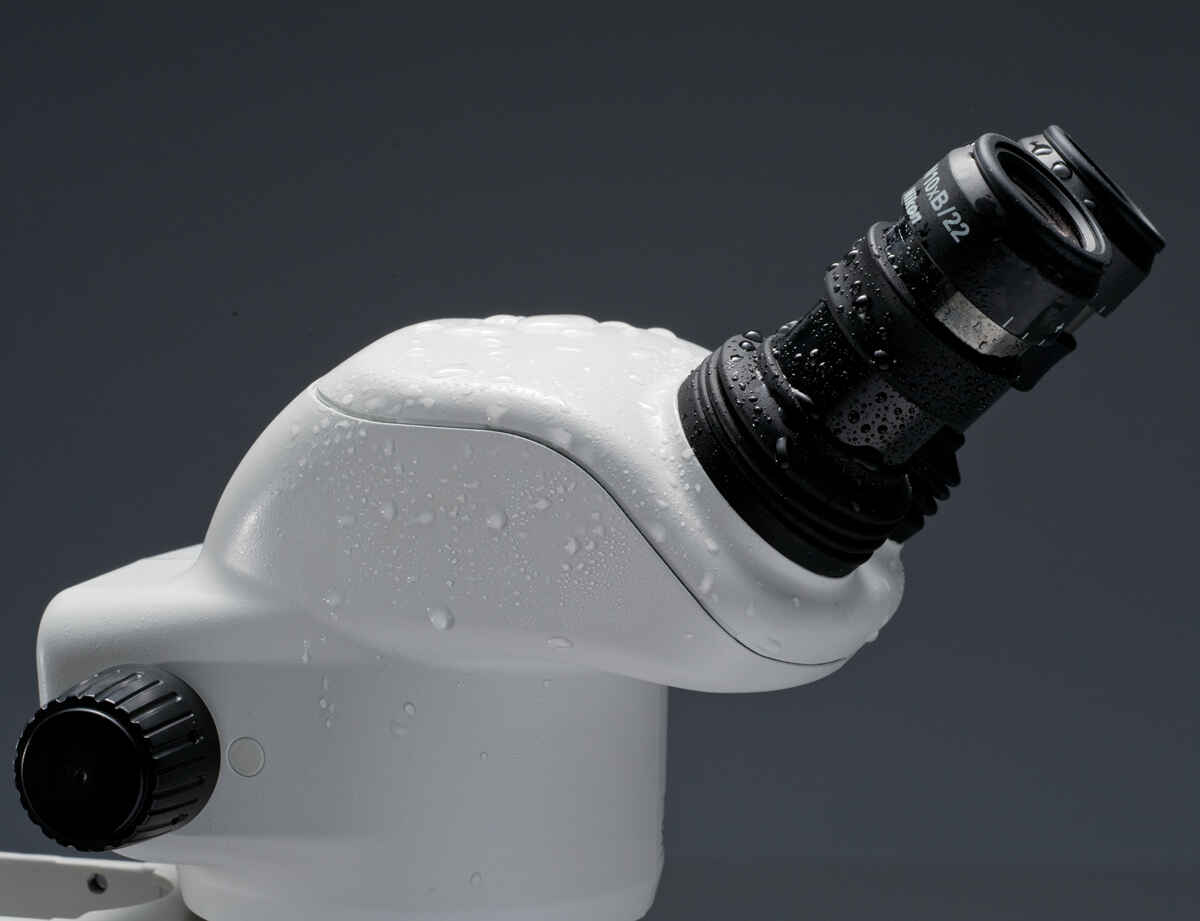

• Air-tight construction (SMZ745) to reduce dust/oil/moisture contamination.
• Anti-fungal internal coating — suitable for humid or challenging lab environments.
• Anti-static (ESD) protection to safeguard sensitive samples from discharge. -
Weight: Approx. 1.6 kg (SMZ745), approx. 1.8 kg (SMZ745T)
