Overview

The Optos California is designed specifically for advanced medical imaging and has become a leading choice for modern retinal screening programs. Built to deliver extremely wide-field views of the retina, the California captures a 200° ultra-wide image covering roughly 82% of the retina in a single, rapid acquisition lasting less than half a second. This capability supports efficient assessment and ongoingmanagement ofconditions such as diabetic retinopathy, geographic atrophy, age related macular degeneration, and uveities

With its next-generation imaging technology, the California enables clinicians to visualize more retinal detail and identify pathology earlier, ultimately enhancing patient care and clinical decision-making. The system offers several workflow-enhancing features, including a motorized chin and headrest to accommodate patients who may need additional alignment support.

Its unique 4-in-1 Color Depth Imaging™ provides four complementary retinal views color RGB, color RG, Sensory Retina, and Choroidal imaging—captured in a single scan. For practices requiring vascular assessment, the California also supports dye-based angiography, including fluorescein and indocyanine green (ICG). The interweaved angiography mode allows simultaneous FA and ICG acquisition without switching modalities, saving time and preserving image consistency.

Specifications

Imaging Modalities

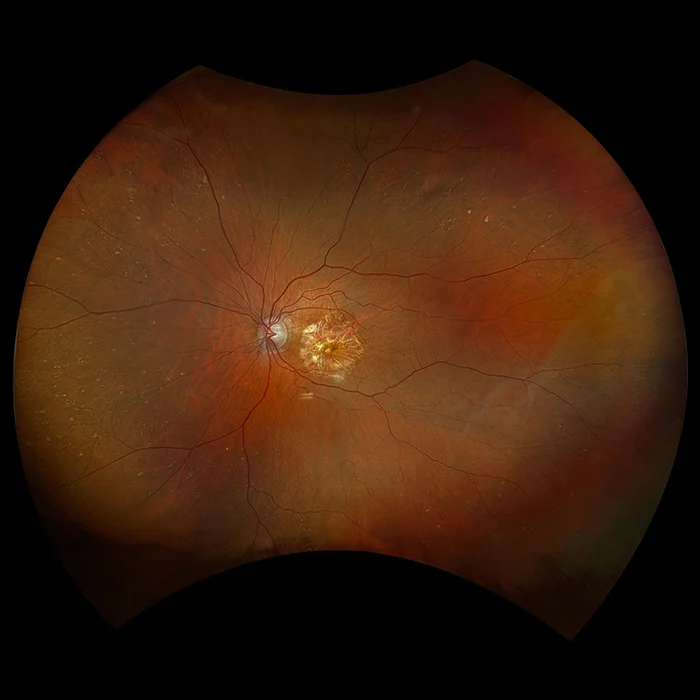

  • optomap color RGB (red, green, blue lasers)

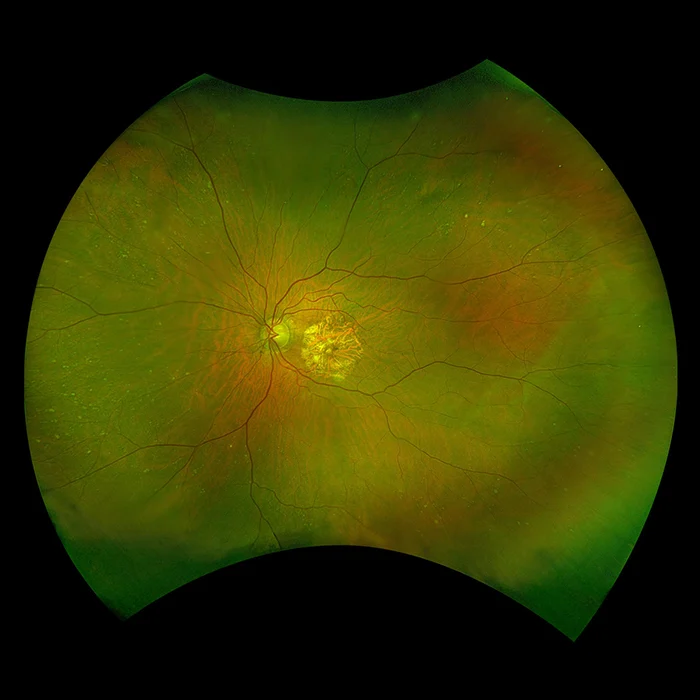

  • optomap color RG (red and green lasers)

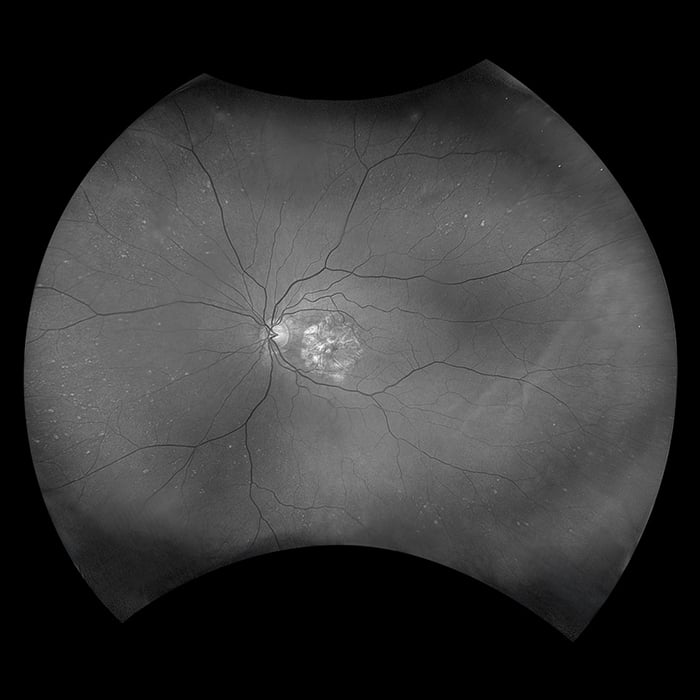

  • optomap Sensory Retina (green laser)

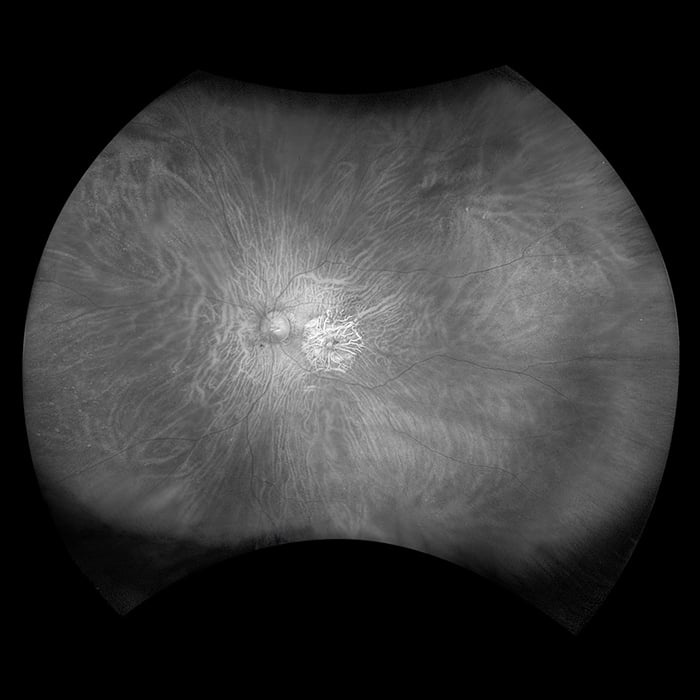

  • optomap Choroidal (red laser)

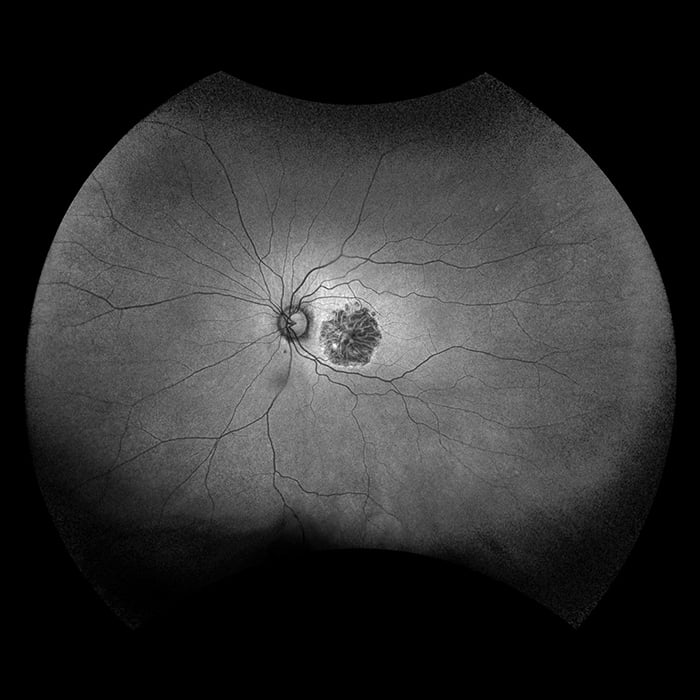

  • optomap AF – green laser autofluorescence

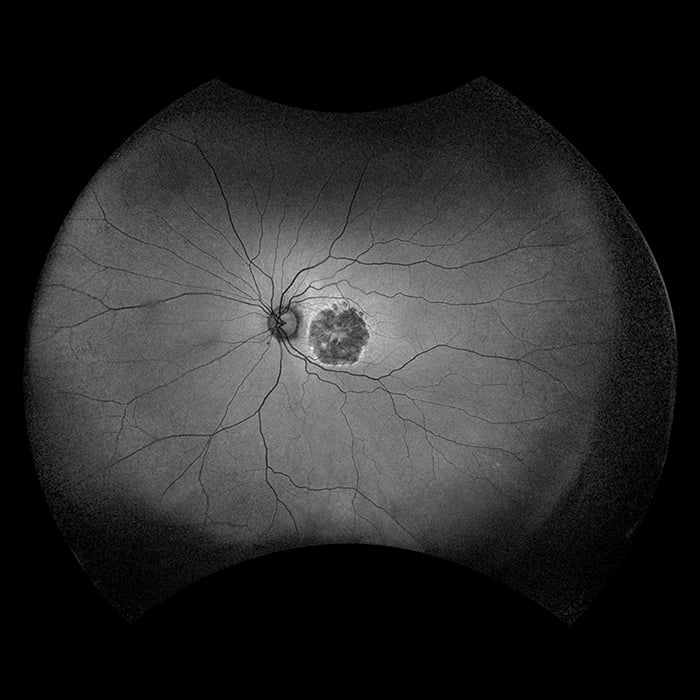

  • optomap AF – blue laser autofluorescence
  • optomap FA – fluorescein angiography (blue laser)

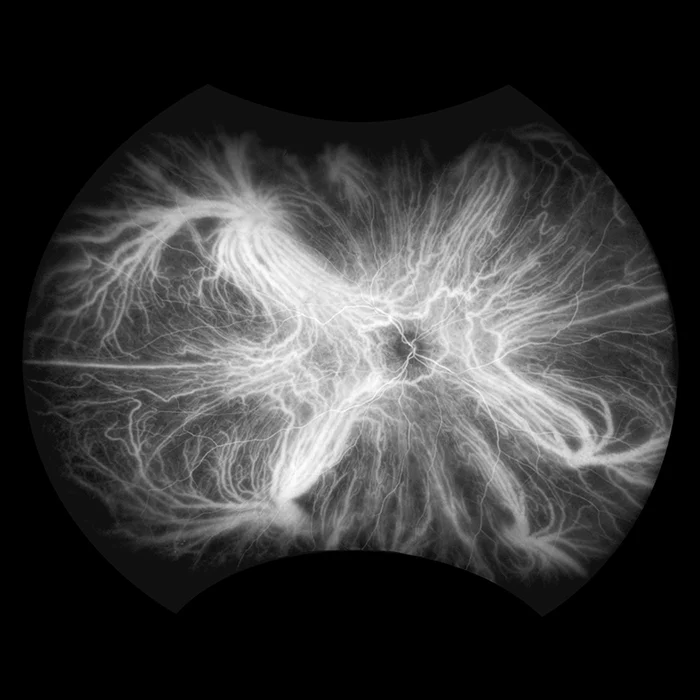

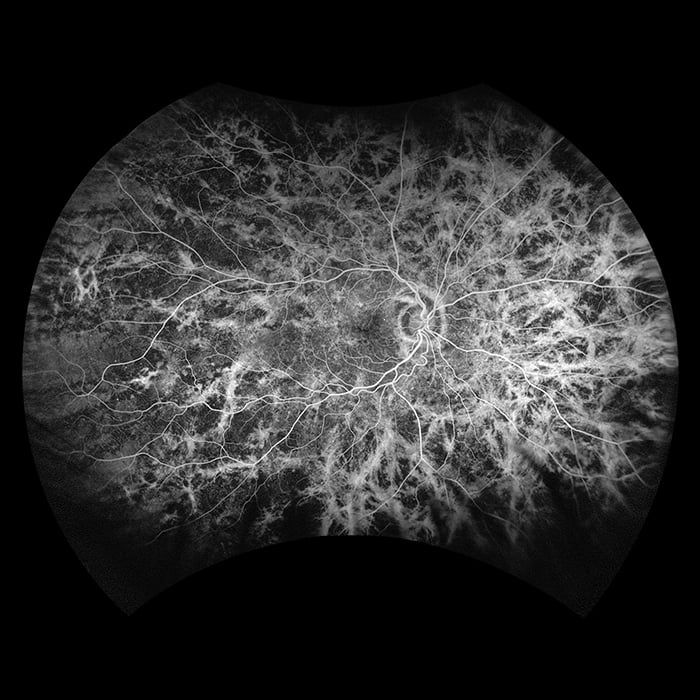

  • optomap ICG – indocyanine green angiography (infrared laser)

Resolution

  • optomap plus: 14 μm
  • optomap: 20 μm

Laser Wavelengths

  • Red: 635 nm
  • Green: 532 nm
  • Blue: 488 nm
  • Infrared: 802 nm

Acquisition Time

  • Image capture in < 0.4 seconds

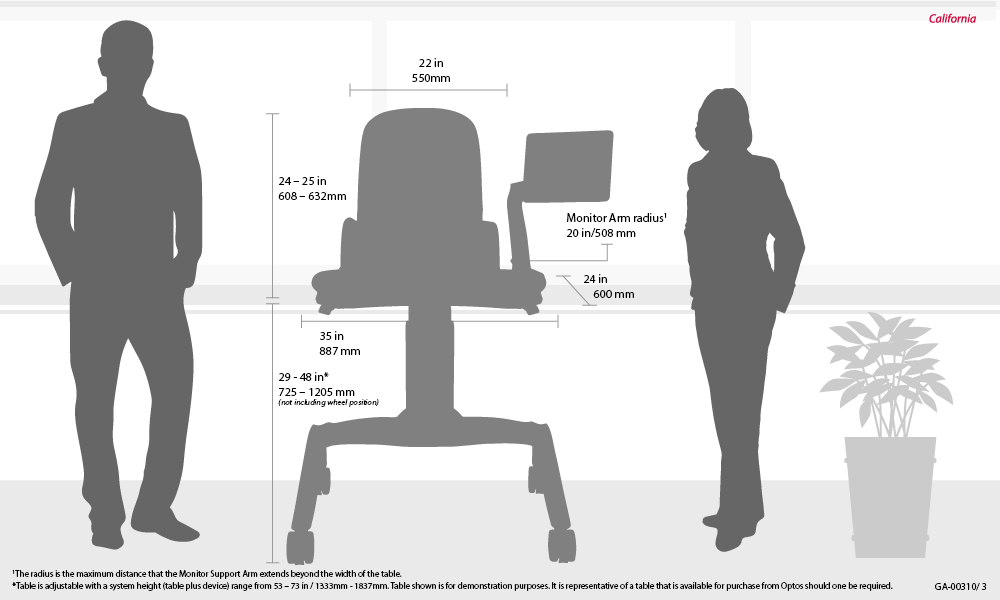

System Dimensions

  • Width: 550 mm (22 in)
  • Depth (with chinrest): 550 mm (22 in)
  • Height: 608–632 mm (24–25 in)

Weight

  • 34 kg (75 lbs)

Laser Classification

  • Class 1 laser system compliant with IEC/EN 60825-1:2007
  • Meets 21 CFR 1040.10 & 1040.11 requirements

Electrical Requirements

  • US: 100–120 V, 50/60 Hz
  • EU/AU: 200–240 V, 50/60 Hz

Power Consumption

  • Maximum: 300 VA

Connectivity

  • Fully DICOM compatible



You can find complete, updated details on the manufacturer’s website:
[Visit Optos official product page]
