ECLIPSE Ts2R
Gallery
Overview

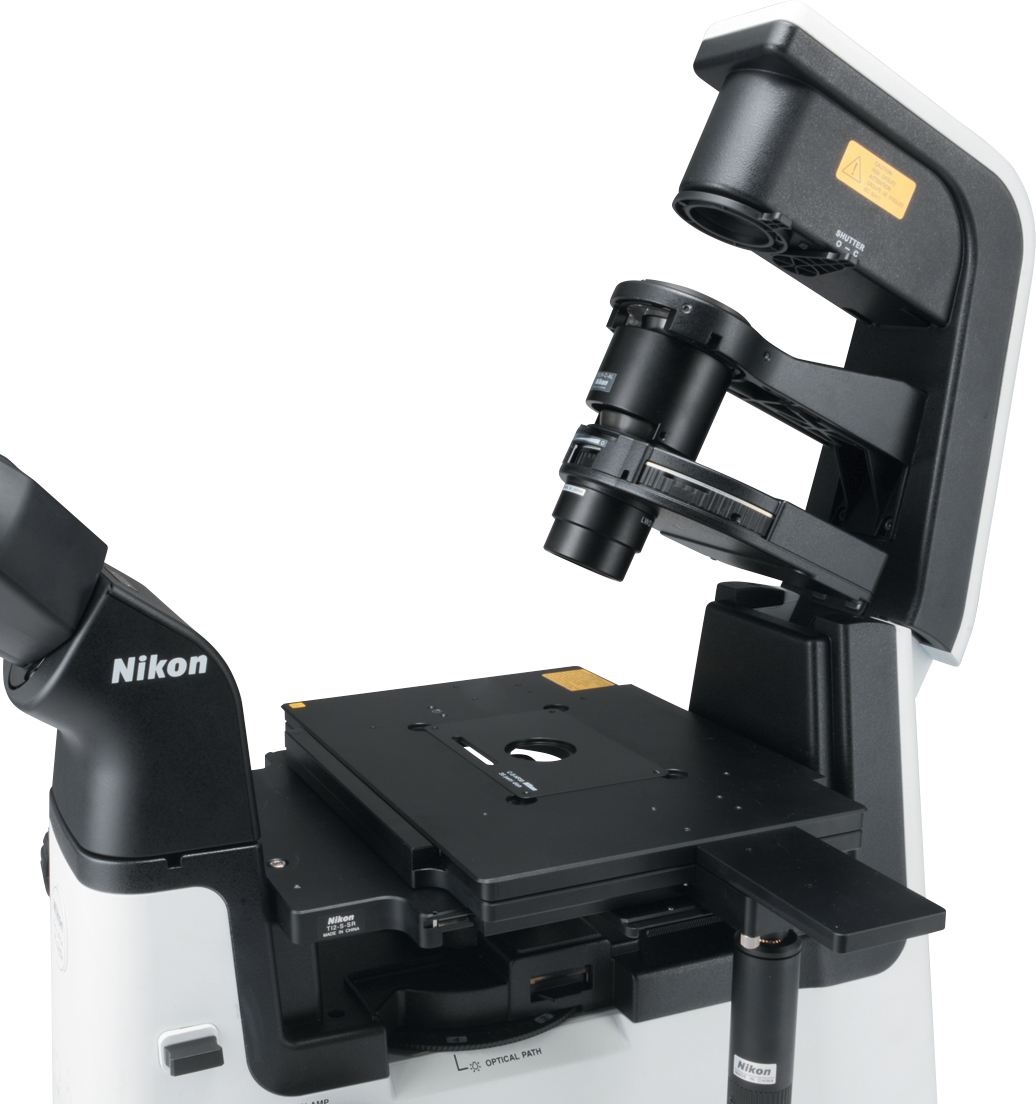

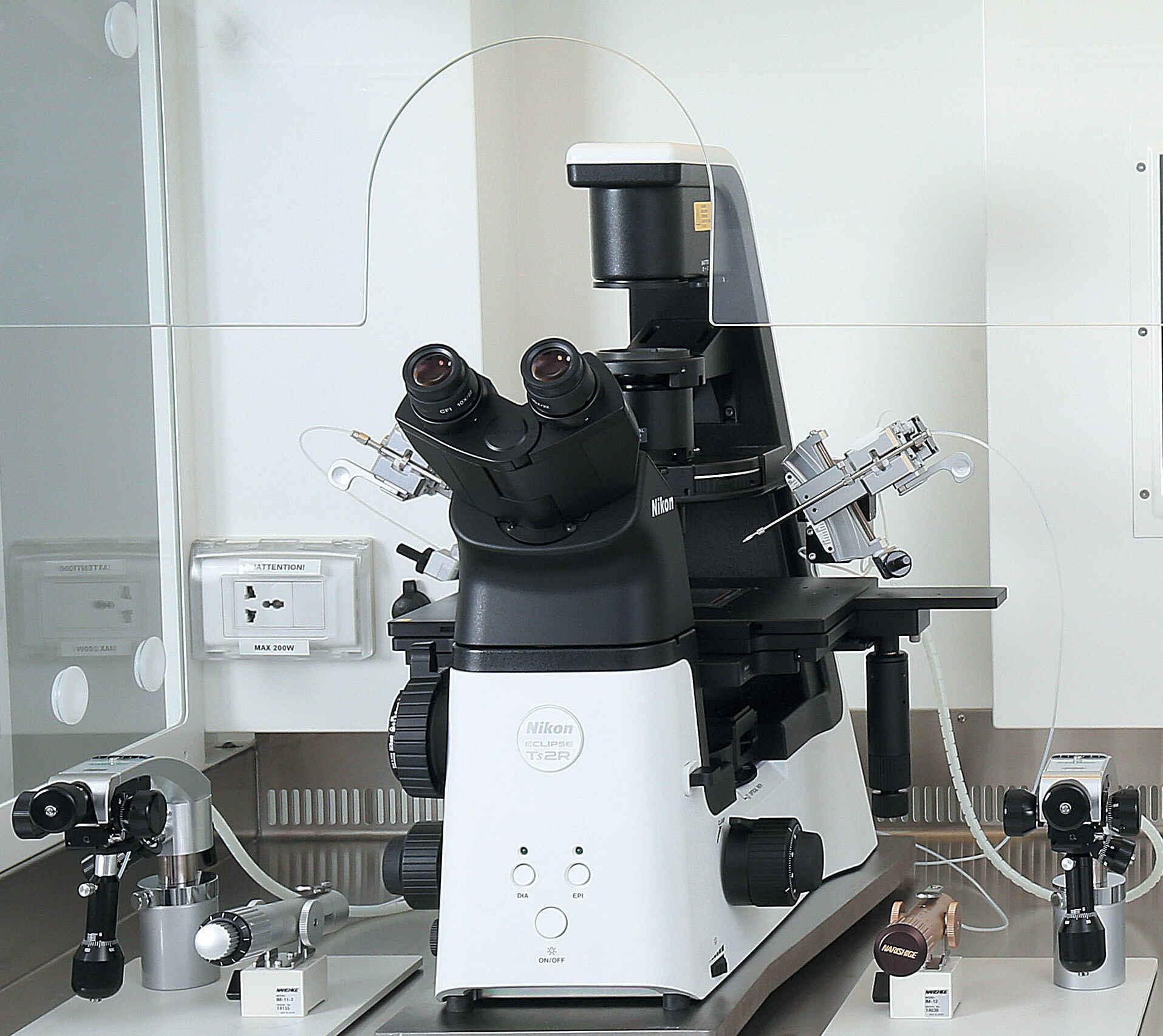

The Nikon ECLIPSE Ts2R is a compact inverted research microscope designed for laboratories that need advanced imaging capabilities in a space-efficient layout. Its low-stage ergonomic design enhances comfort during prolonged use, while the system supports a wide range of transmitted-light contrast techniques including Brightfield, Phase Contrast, NAMC, DIC, and Emboss Contrast. Built around Nikon’s CFI60 optical platform, the Ts2R delivers sharp, high-resolution images ideal for cell culture inspection, routine observations, and demanding research workflows. Its modular design, intuitive controls, and compatibility with multiple sample holders make it a versatile choice for modern life-science laboratories.
Specifications
Optical System: Nikon CFI60 infinity-corrected
Observation Modes: Brightfield, Phase Contrast, Apodized Phase Contrast, NAMC, DIC, Emboss Contrast, Spindle Observation
Illumination (Diascopic): High-intensity white LED with uniform fly-eye optical design
Tube Options:
Binocular tube (35°)
Ergonomic adjustable-angle tube (15–45°)
Side camera port available
Eyepieces: 10× (22 mm FOV), 12.5× (16 mm FOV), 15× (14.5 mm FOV)
Camera Port Light Split: 100:0 / 0:100, 100:0 / 20:80, 100:0 / 50:50
Focusing System: Manual coarse/fine focusing; coarse 5 mm/rotation, fine 0.1 mm/rotation; ±8 mm travel
Nosepiece: 6-position revolving nosepiece
Condenser: 7-position turret; compatible with ELWD, LWD, NAMC condensers
Stage Options:
Plain stage 260 × 300 mm
Mechanical stage with 114 × 73 mm travel and adjustable XY limiters
Sample Holders: Glass slides, 35 mm & 100 mm dishes, universal holder, Terasaki plates, ring holders, etc.
Power Requirements: 100–240 V, <0.65 A, approx. 30 W consumption
Dimensions (W × D × H): 286 × 466 × 542 mm
Weight: ~17 kg
You can find complete, updated details on the manufacturer’s website:
[Visit Nikon official product page]
