ECLIPSE Ts2R-FL
Gallery
Overview

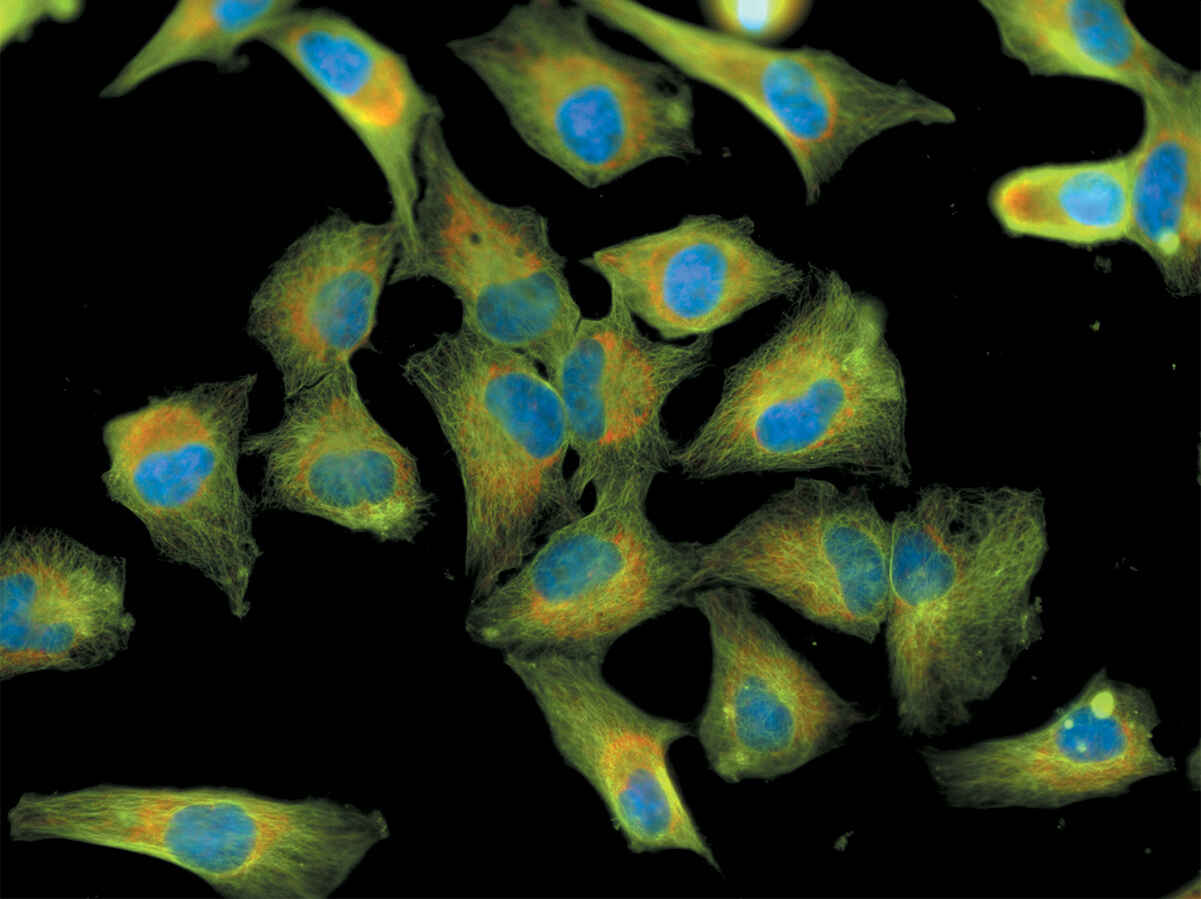

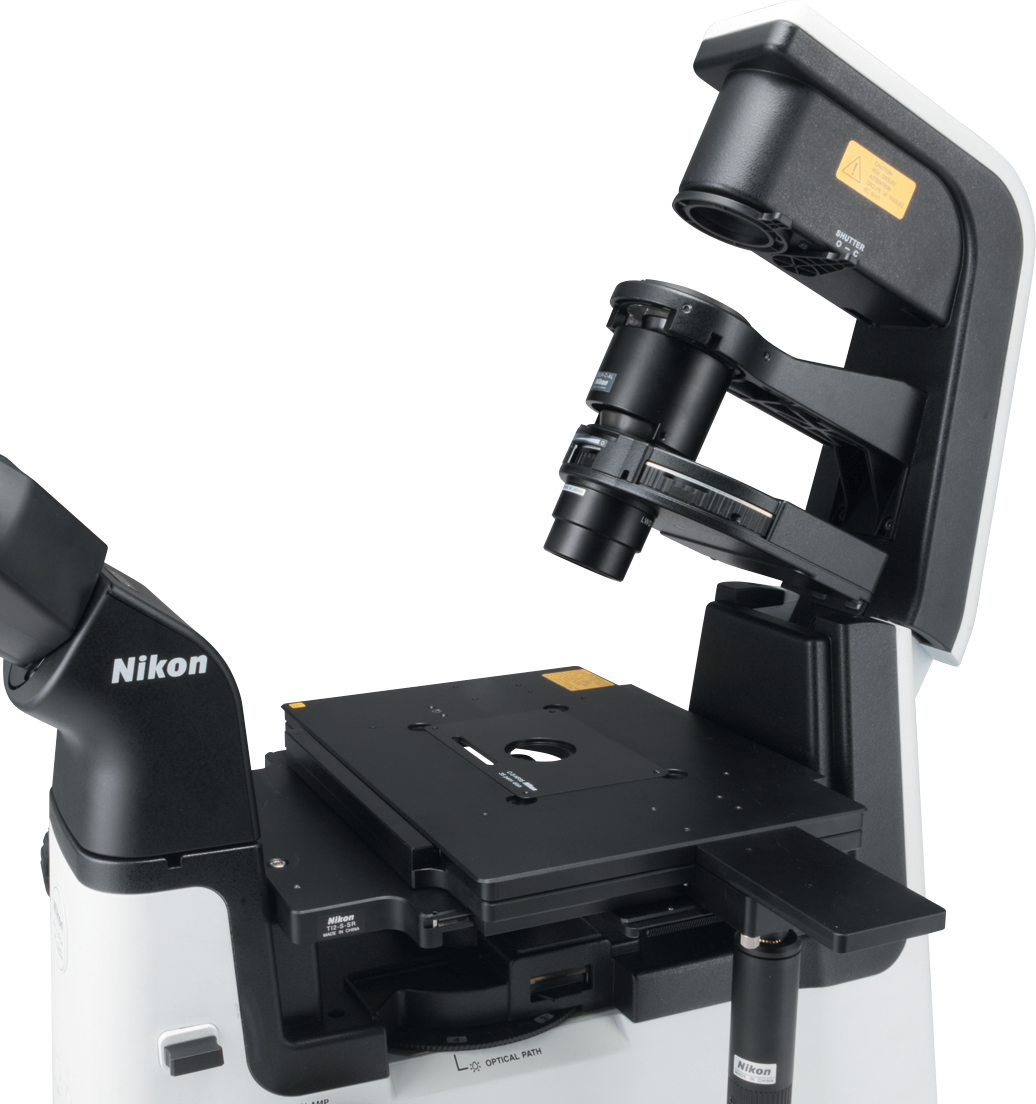

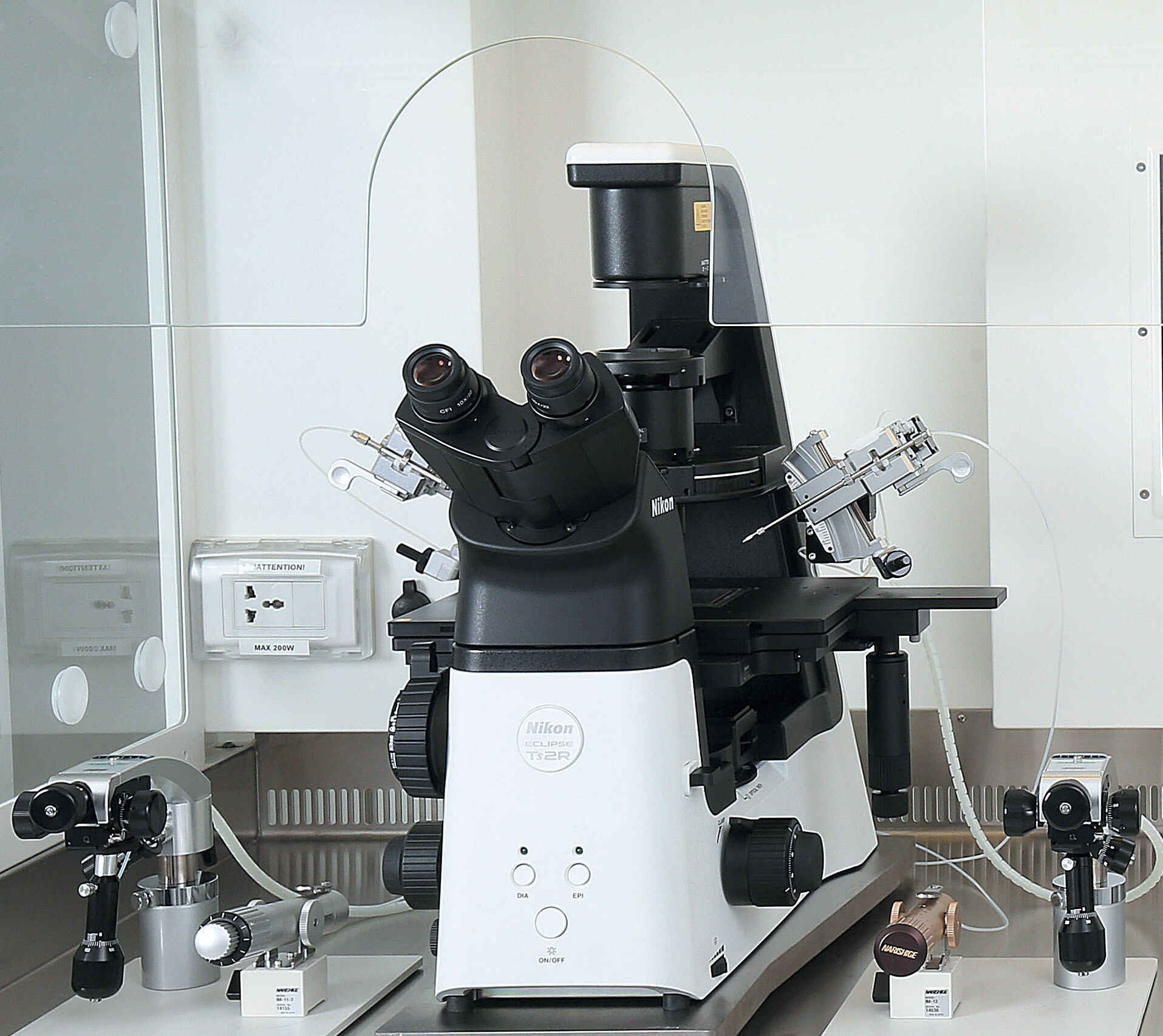

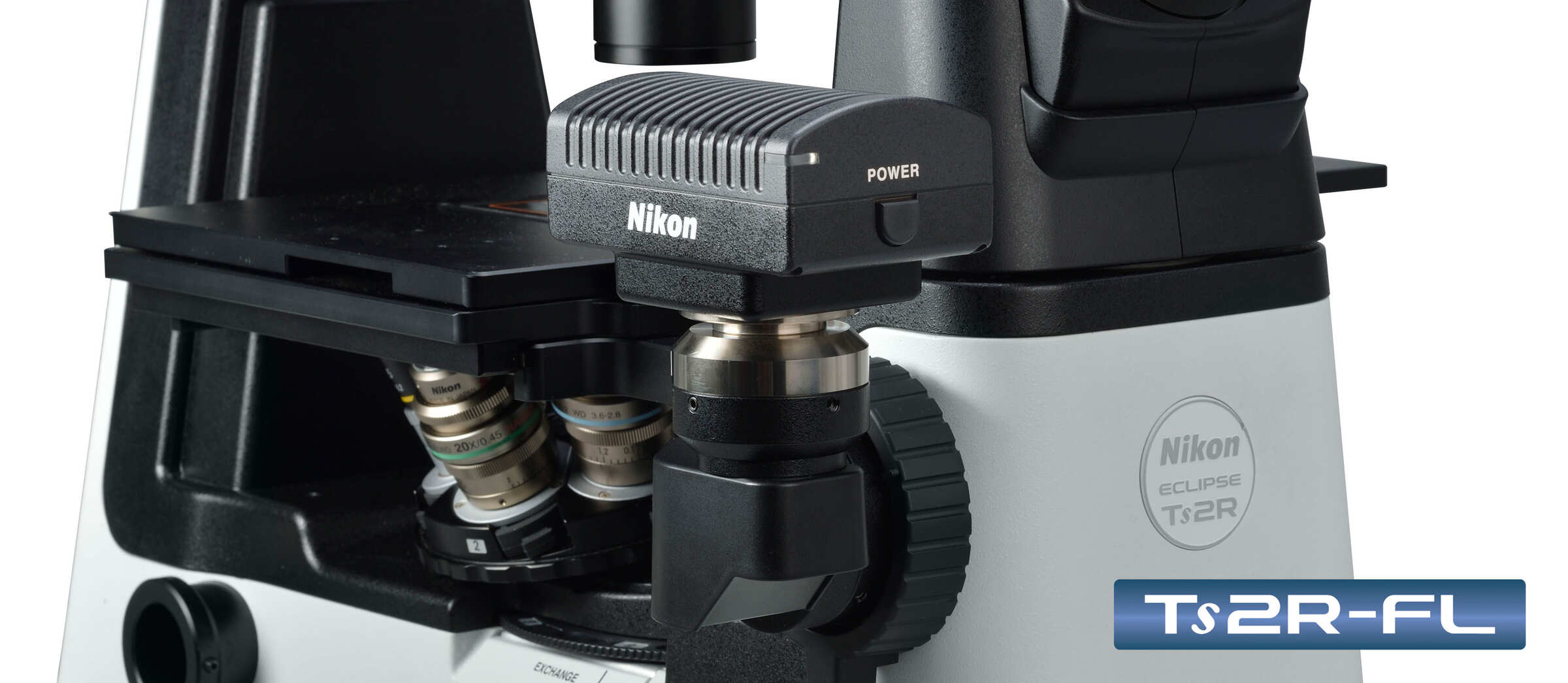

The Nikon ECLIPSE Ts2R-FL extends the functionality of the Ts2R by integrating a high-performance LED epi-fluorescence illumination system. Designed for fluorescence-based experiments, this model supports multiple excitation wavelengths and a 4-position filter turret for flexible imaging of common fluorescent markers. The built-in LED architecture ensures stable, bright, and low-heat illumination, while the optional Contrast Shield enables high-contrast fluorescence imaging even in brightly lit environments. Combining advanced fluorescence with all transmitted-light capabilities of the Ts2R, the Ts2R-FL is an ideal compact solution for cell biology, live-cell imaging, and fluorescence-based research applications.
Specifications
Optical System: Nikon CFI60 infinity-corrected
Observation Modes:

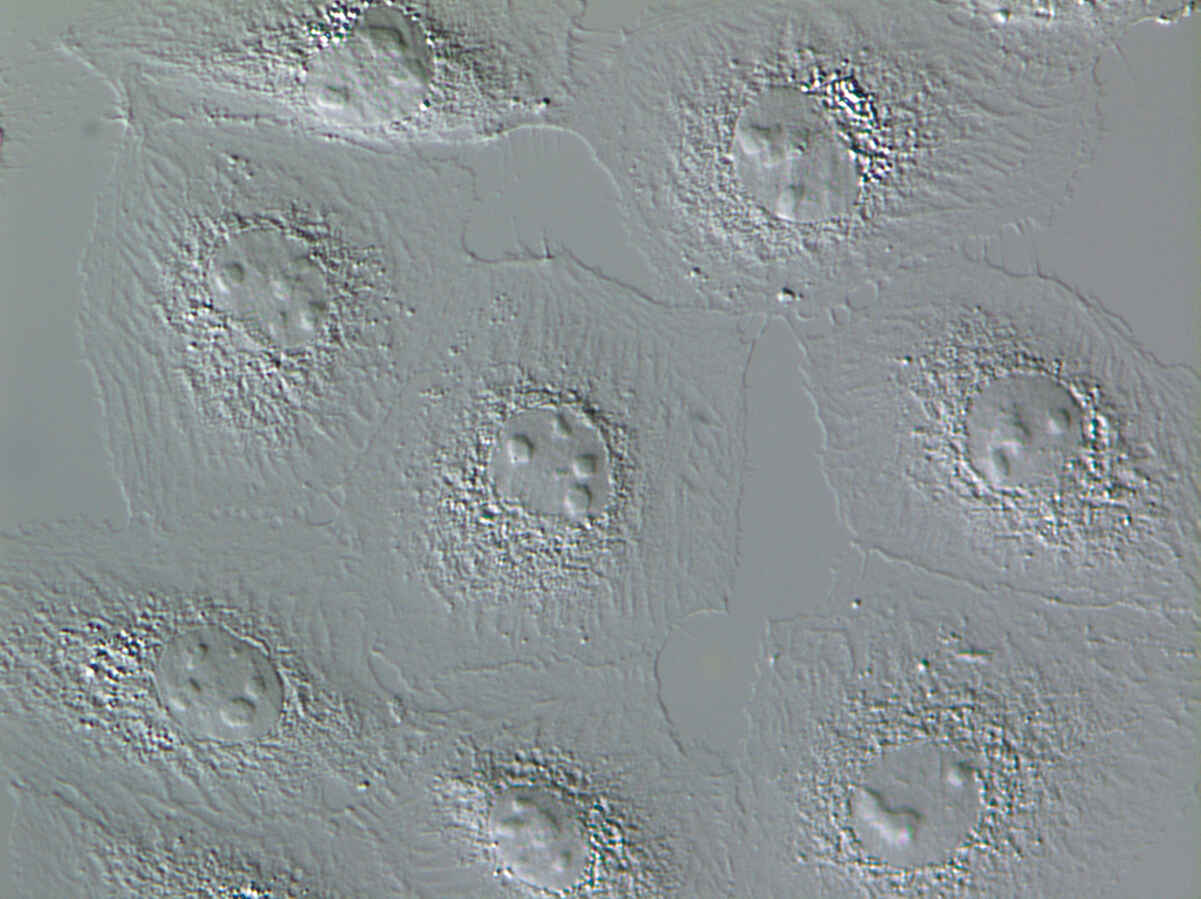

All Ts2R transmitted-light modes
Plus epi-fluorescence imaging
Diascopic Illumination: High-brightness white LED with fly-eye lens for uniform lighting
Epi-Fluorescence Illumination:
LED-based module
Supports up to 4 LED units
Available wavelengths: 385, 455, 470, 505, 525, 560, 590, 625 nm
Fluorescence Filter Turret: 4-position turret with noise-reduction shutter; one position used during brightfield
Tube Options: Same as Ts2R (binocular / ergonomic / camera port)
Eyepieces: Same as Ts2R
Camera Port Light Split: 100:0 / 0:100, 100:0 / 20:80, 100:0 / 50:50
Focusing: Same manual coarse/fine system as Ts2R
Nosepiece: 6-position revolving
Condenser: 7-position turret compatible with all Ts2R condenser lenses
Stage Options: Plain or mechanical stage with 114 × 73 mm travel
Sample Holders: Full range identical to Ts2R
Optional Accessories:

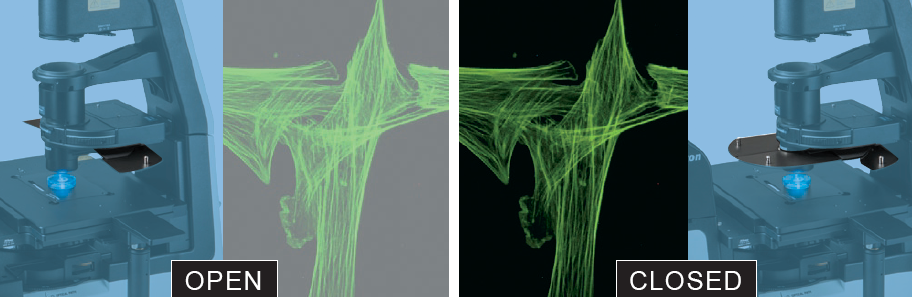

Contrast Shield for improved fluorescence S/N ratio in bright rooms
Dimensions (W × D × H): 286 × 466 × 542 mm
Weight: ~18 kg (slightly heavier due to fluorescence module)
Power Requirements: 100–240 V, approx. 30 W
