ECLIPSE Ci POL
Gallery
Overview
The Nikon Eclipse Ci POL is a compact and reliable polarizing microscope designed for routine analysis and advanced polarimetry in fields such as geology, materials science, and education. Built with Nikon’s CFI60 infinity optical system, it delivers sharp, high-contrast images with excellent color fidelity. Its ergonomic design features smooth focusing controls, a 360° rotating stage, and a built-in Bertrand lens for both orthoscopic and conoscopic observation. With a 30 W halogen illumination system, a centerable quintuple nosepiece, and strong mechanical stability, the Ci POL offers precise polarization performance while remaining easy to operate. It is an ideal choice for laboratories that need high-quality polarized imaging in a compact and user-friendly platform.
Specifications
Optical System
- CFI60 infinity-corrected optical system
Illumination
-
6V, 30W halogen lamp (built-in)
-
Built-in ND8 and ND4 neutral density filters
-
Manual brightness control
Focusing
-
Coaxial coarse and fine focus mechanism
-
Focus stroke: 30 mm
-
Coarse focus travel: approx. 9.33 mm per rotation
-
Fine focus travel: 0.1 mm per rotation
-
Minimum fine-focus reading: 1 μm
Eyepieces
-
CFI 10× eyepiece (22 mm field of view)
-
CFI 10× CM eyepiece with crosshair (22 mm)
-
CFI 12.5× eyepiece (16 mm FOV)
-
CFI 15× eyepiece (14.5 mm FOV)
Eyepiece Tubes
-
P-TT3 trinocular tube for polarizing microscopy
-
P-TB2 binocular tube for polarizing microscopy
Intermediate Tube / Optical Accessories
-
Built-in, focusable Bertrand lens
-
Switchable between orthoscopic and conoscopic observation
-
Compensator slot for test plates and retardation accessories
-
Built-in analyzer

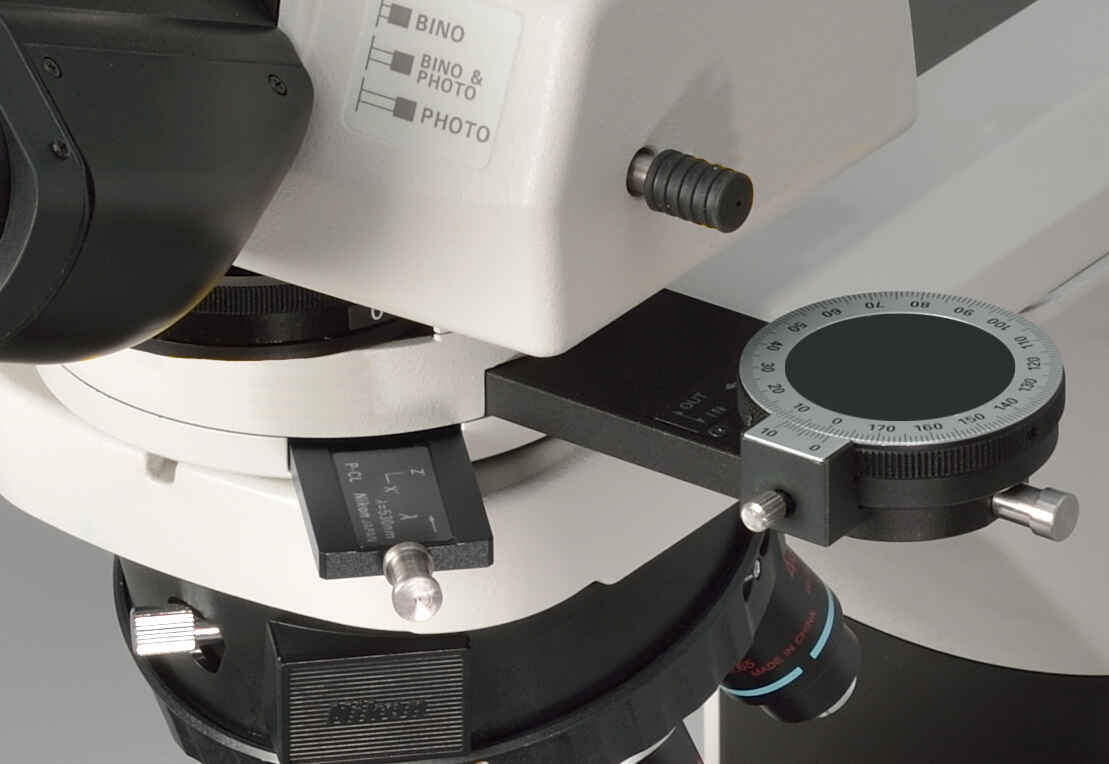

Analyzer
-
360° rotating analyzer
-
Angle reading in 0.1° increments
Nosepiece
-
Centerable, reversed quintuple nosepiece
-
DIN-standard compensator slot
Stage
-
Ball-bearing circular stage
-
360° rotation with lock at any position
-
1° graduation marks
-
Optional mechanical stage: 35 × 25 mm travel with 0.1 mm vernier scale
Condenser
-
Strain-free swing-out condenser
-
Numerical Aperture: NA 0.9 (P Achromat)
Polarizer
-
Fixed beneath condenser holder
-
Includes alignment scale markings

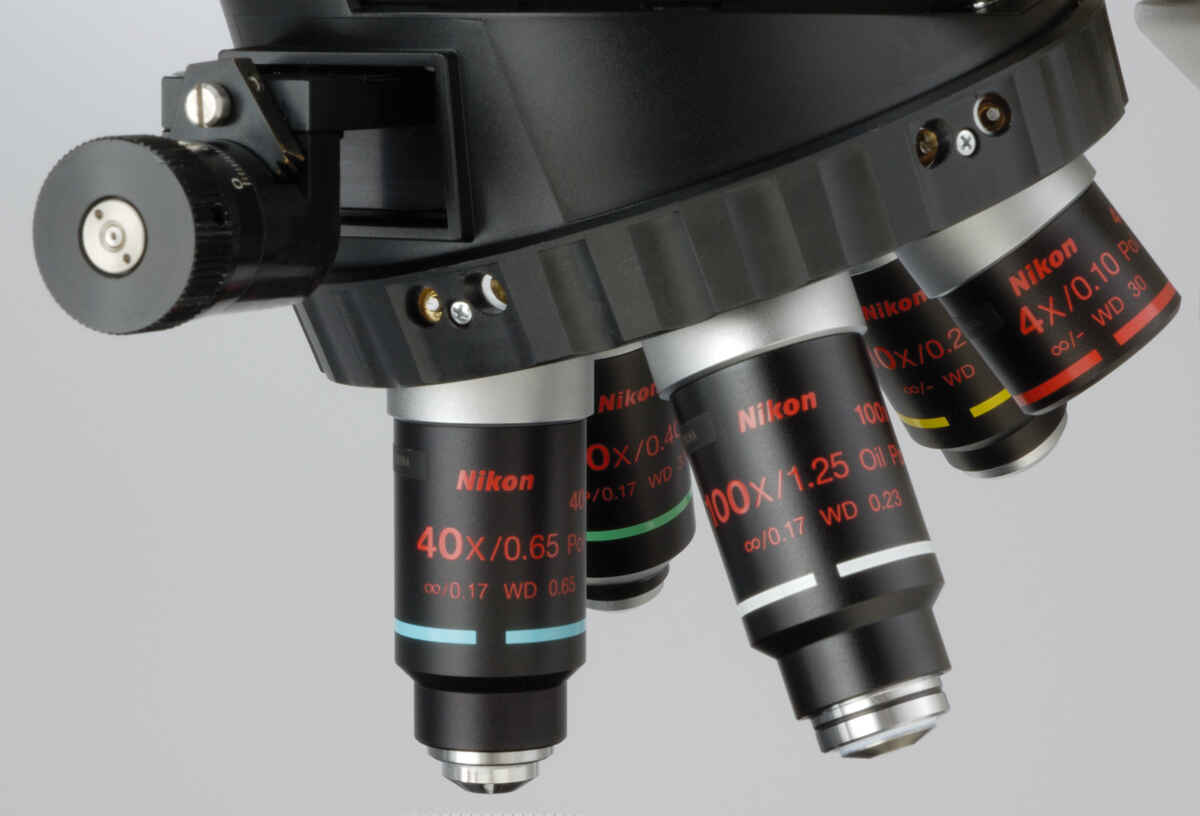

Objectives
Diascopic (Transmitted Light) Options:
-
CFI Achromat P 4×
-
CFI Achromat P 10×
-
CFI Achromat LWD P 20×
-
CFI Achromat P 40×
-
CFI Achromat P 100× (oil)
Episcopic (Reflected Light) Options:
-
CFI LU Plan Fluor EPI P 5×
-
CFI LU Plan Fluor EPI P 10×
-
CFI LU Plan Fluor EPI P 20×
-
CFI LU Plan Fluor EPI P 50×
-
CFI LU Plan Fluor EPI P 100× (oil)
Episcopic Illuminator
-
Compatible with LV-UEPI-N universal epi-illuminator
-
Requires external C-LL-CTRL power supply when used on Ci POL
Compensators / Test Plates
-
¼ λ plate
-
Tint plate
-
Quartz wedge compensator
-
Senarmont compensator
Power Consumption
-
Approximately 0.8 A / 38 W
Weight
-
Approx. 14 kg (standard binocular configuration)
